Packing & Container Loading

Protected for the Journey.

Scroll to explore

01 · Packing Matrix

Polished glazed porcelain tile packing details.

Standard 20 FT and 40 FT container configurations for common porcelain tile formats.

Sr. No.	Product Description	Container Type	Pallet Type	Pcs / Box	Sq. M / Box	Approx. Kg / Box	Boxes / Pallet	Pallets / Container	Total Boxes	Total Sq. M	Net Weight (Kg)	Gross Weight (Kg)
1	Digital Glaze Porcelain (Vitrified) Tiles600 × 600 MM	20 FT	Normal	4	1.44	25.50	40	27	1,080	1,555.20	27,540	28,040
2	Ivory Tiles / Nano Soluble Salt Tiles600 × 600 MM	20 FT	Normal	4	1.44	21.00	50	26	1,300	1,872.00	27,300	27,820
3	Digital Glaze Porcelain (Vitrified) Tiles600 × 1200 MM	20 FT	Normal	2	1.44	26.50	32	8	1,024	1,474.56	27,136	27,636
3A	Digital Glaze Porcelain (Vitrified) Tiles600 × 1200 MM	20 FT	Euro	2	1.44	26.50	32	32	1,024	1,474.56	27,136	27,776
4	Digital Glaze Porcelain (Vitrified) Tiles800 × 800 MM	20 FT	Normal	3	1.92	38.00	36	20	720	1,382.40	27,360	27,760
5	Digital Glaze Porcelain (Vitrified) Tiles800 × 1600 MM	20 FT	Normal	2	2.56	54.00	28	18	504	1,290.24	27,216	27,716
6	Wooden Strip Tiles, W.A. < 0.50%200 × 1200 MM	20 FT	Euro	5	1.20	25.00	42	26	1,092	1,310.40	27,300	27,800
7	Digital Glaze Porcelain (Vitrified) Tiles300 × 600 MM	20 FT	Normal	5	0.90	17.50	64	24	1,536	1,382.40	26,880	27,380
8	Digital Glaze Porcelain (Vitrified) Tiles1200 × 1200 MM	20 FT	Normal	2	2.88	60.00	28	13	444	1,278.72	26,640	27,140
9	Digital Glaze Porcelain (Vitrified) Tiles1200 × 1800 MM	20 FT	Metal	2	4.32	90.00	22	12	300	1,296.00	27,000	27,500
10	Digital Glaze Porcelain (Vitrified) Tiles1200 × 2400 MM	40 FT	Metal	1	2.88	60.00	37	12	444	1,278.72	26,640	27,140
11	Digital Glaze Porcelain (Vitrified) Tiles800 × 2400 × 15 MM	20 FT	Metal	1	1.92	68.00	29	12	348	668.16	23,664	23,784
12	Heavy Duty Porcelain (Vitrified) Tiles600 × 600 × 20 MM	20 FT	Euro	2	0.72	31.50	32	27	864	622.08	27,216	27,756
13	Heavy Duty Porcelain (Vitrified) Tiles600 × 900 × 20 MM	20 FT	Euro	1	0.54	24.50	40	28	1,120	604.80	27,440	27,940

Export-ready protection

Packing planned around product and destination.

Every packing plan reflects tile format, order mix, handling route and buyer requirements. Construction details and loading quantities are confirmed with the selected products in the quotation.

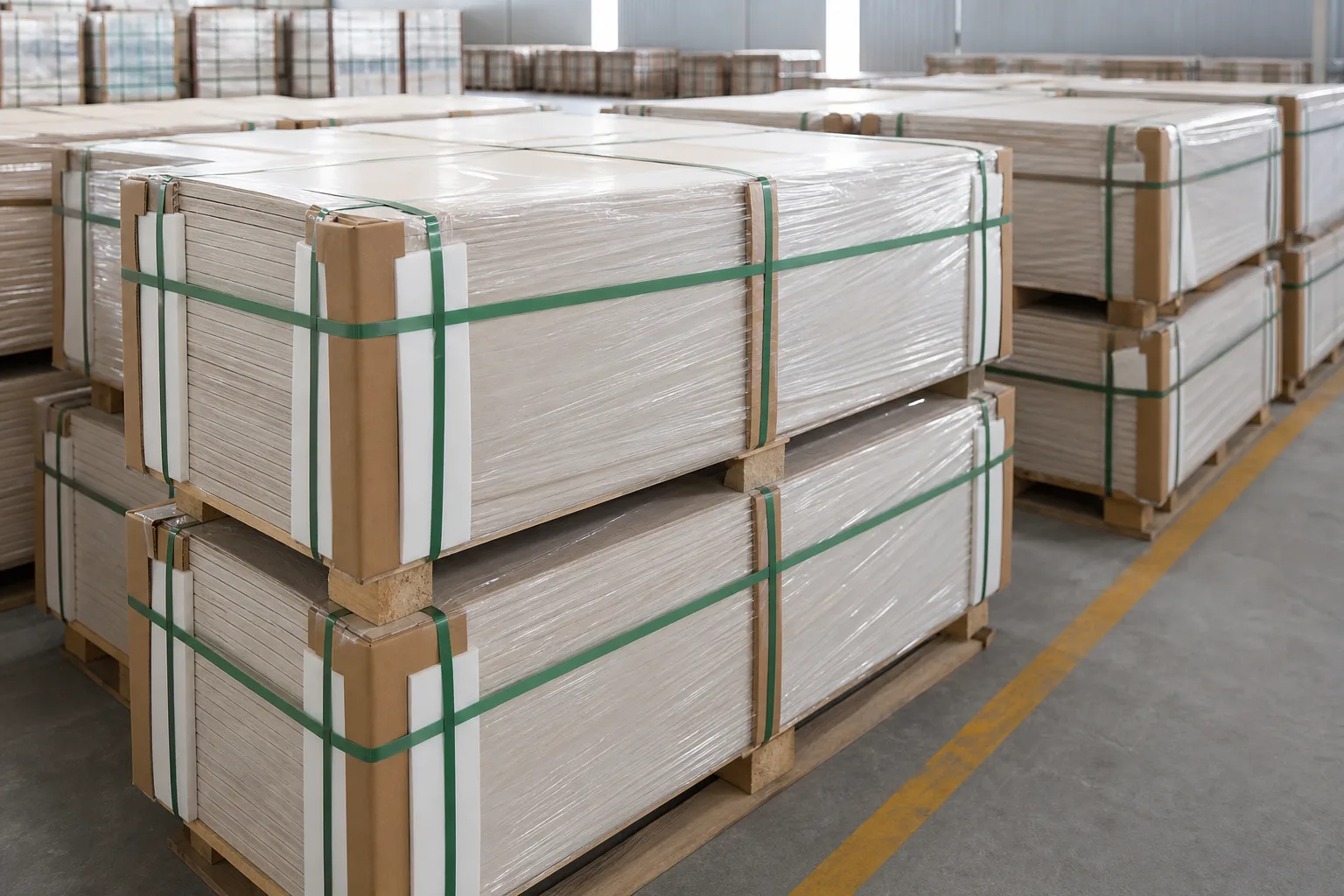

Securely wrapped and strapped ceramic tile bundles — Protected loose packing

02 · Loose Packing

Efficient loading for suitable products.

Protection suited to the selected product and surface
Bundle alignment, edge protection and secure strapping
Clear handling and batch identification

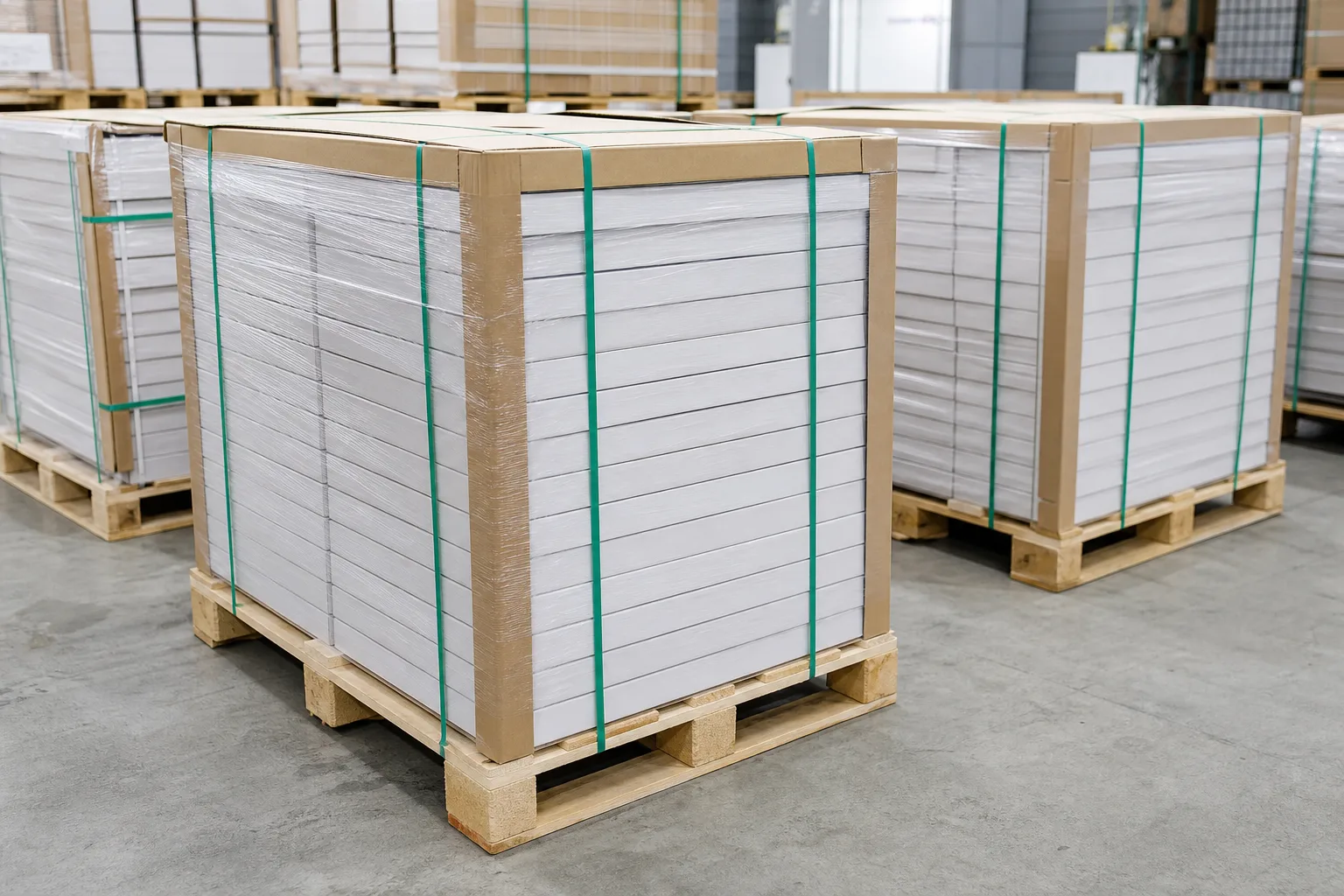

Ceramic tile cartons secured on wooden pallets — Structured pallet packing

03 · Wooden Pallets

Structured handling and added support.

Cartons arranged on a suitable wooden base
Corner guards, stretch wrapping and external strapping
Treatment documentation arranged when applicable

04 · Product-level Planning

Every detail aligned with the selected order.

Final specifications are issued with the quotation for the chosen size, finish and packing method.

Box Configuration

Pieces, coverage, dimensions and gross weight are matched to each product.

Pallet Planning

Carton arrangement and protection are configured for safe handling.

Batch Identification

Order, shade, calibre and handling information remain clear through dispatch.

05 · Container Loading

Planned for safe, practical international dispatch.

Container plans account for the product mix, packing method, permissible payload and destination handling requirements.

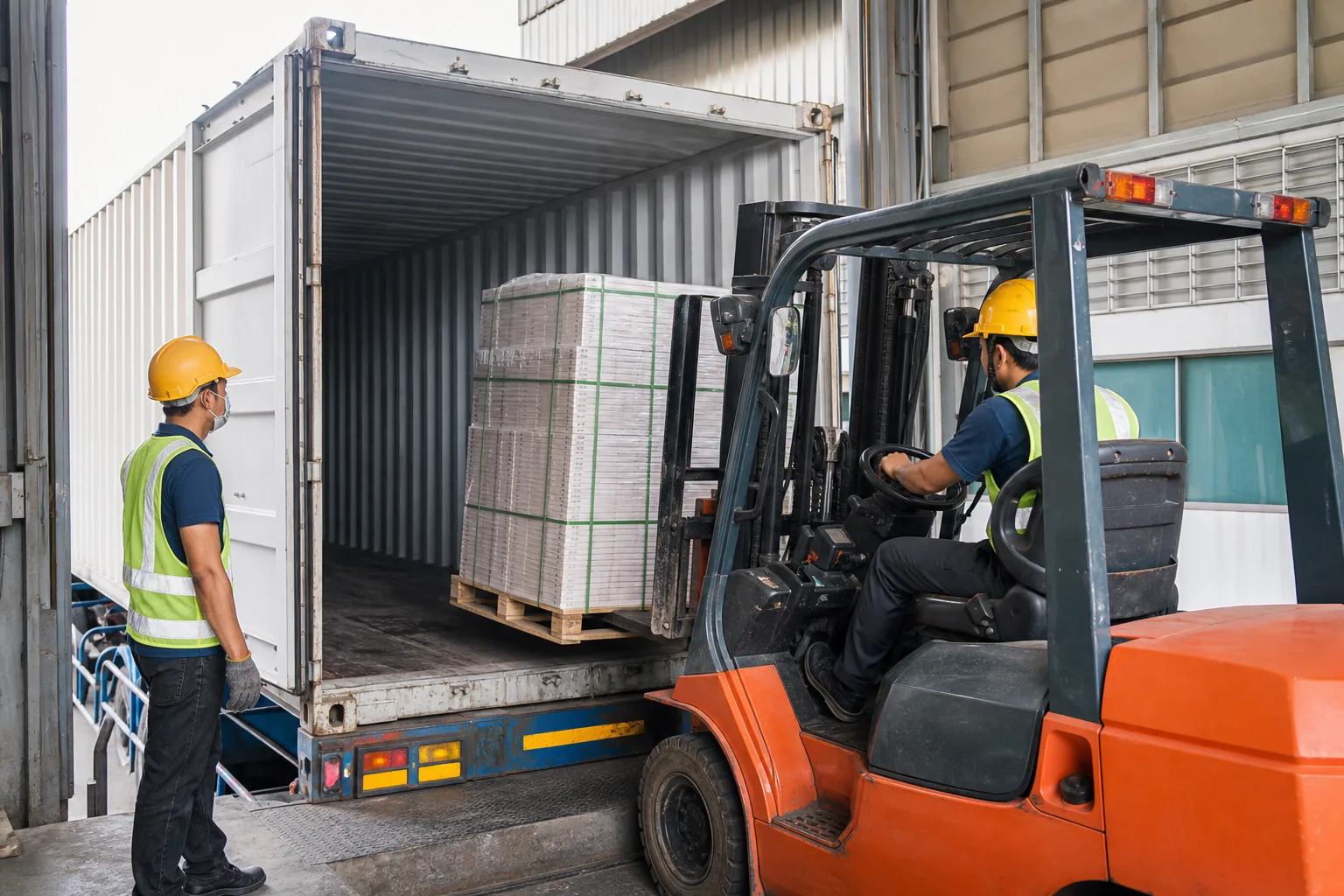

Palletized ceramic products prepared for container loading — Coordinated container loading

Product Mix

Sizes, finishes and batch quantities coordinated together

Destination Ready

Loading and documentation aligned with the agreed shipment

Ready to plan your shipment?

Share your product sizes, quantities and destination with our export team.

Request a Packing Plan
